| Quantity: | |
|---|---|
205 * 40 * 127 * 12 230 * 40 * 127 * 12 280 * 40 * 150 * 12 330 * 40 * 200 * 12 330 * 60 * 200 * 12

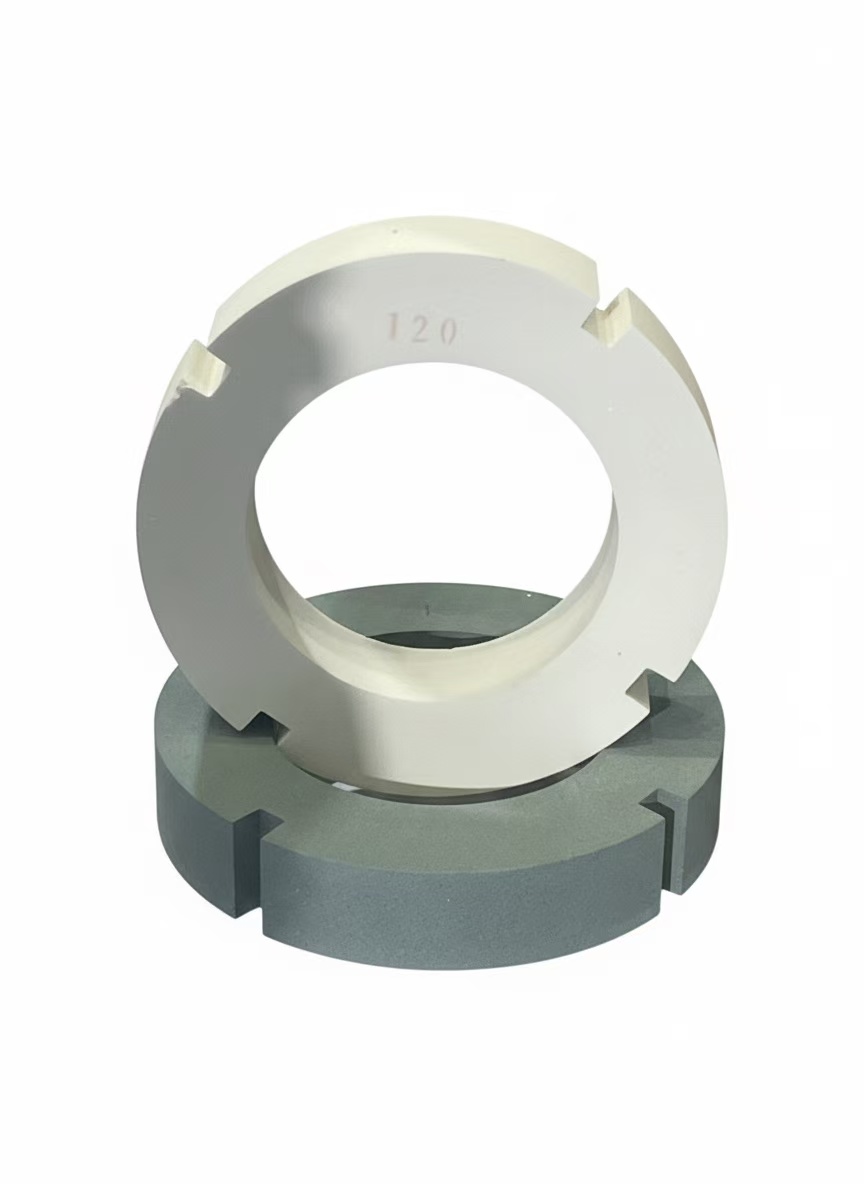

Are you searching for a precision correcting ring grinding wheel that delivers exceptional grinding performance and stability? Our Green Silicon Carbide (GC) Correcting Ring Grinding Wheel is specifically engineered for high-accuracy grinding applications. Featuring premium GC abrasive, it boasts uniform grain size, excellent self-sharpening properties, and strong grinding force, making it the ideal choice for improving your processing quality and efficiency.
| Parameter | Detail | SEO Keywords |
| Material | Green Silicon Carbide (GC) | GC grinding wheel, Silicon Carbide abrasive, high hardness grinding tool |
| Shape | Flat (Plain) with Grooves | Correcting ring wheel, plain grinding wheel, grooved grinding wheel |
| Hardness | H Grade / J Grade | Ceramic bond grinding wheel hardness |
| Grit Range | 80# - 320# | 80 grit wheel, 320 grit wheel, precision grinding grit |
| Bond | Vitrified (Ceramic) (V) | Vitrified bond wheel, ceramic bonded grinding wheel |
| Max. Operating Speed | 35 M/S | High-speed grinding wheel, 35 m/s |
| Main Dimensions (OD) | 205mm / 230mm / 280mm / 330mm | 205mm grinding wheel, 330mm large OD wheel |
| Main Dimensions (Bore) | 127mm / 150mm / 200mm | 127 bore wheel, 200mm bore size |
| Main Dimensions (Thickness) | 40mm / 60mm | 40mm thickness wheel, 60mm thickness |
Premium Green Silicon Carbide Abrasive: Ensures high hardness and toughness, suitable for grinding hard and brittle materials (e.g., tungsten carbide, ceramics, glass).
Uniform Grain Size: Delivers more stable and finer grinding results with superior surface finish.
Exceptional Grinding Performance: Strong cutting force and low heat generation effectively minimize workpiece burn and deformation, extending the grinding wheel lifespan.
To ensure your safety and the optimal performance of the grinding wheel, please strictly adhere to the following Grinding Wheel Proper Installation and Inspection steps:
Specification Check: Confirm the grinding wheel specifications (material, dimensions, max. speed) perfectly match your equipment and usage requirements.
Spindle Fit: Gently mount the wheel onto the spindle. Ensure the grinding wheel bore has an appropriate clearance (neither too large nor too small) with the spindle and flange, and the mating surfaces are clean and free of debris. Do not use force during assembly.
Flange Symmetry: Ensure the grinding wheel flanges are symmetrically aligned, the clamping surfaces have equal radial width, are flat, and make full contact with the wheel side. The mounting must be secure to prevent uneven forces from deforming or fracturing the wheel.
Blotter Usage: Insert a flexible material blotter of appropriate thickness between the flanges and the wheel end faces to distribute the clamping force evenly.
Tightening Requirement: Tighten the wheel only enough to prevent slippage under operating load. Never tighten the bolts sequentially along the circumference; only use a standard wrench to secure the flanges.
Dimension Verification: Check that the grinding wheel's material, shape, and size are correct.
Visual Inspection: Visually inspect the wheel for any damage, cracks, or chips. Check that both end faces are flat and show no obvious runout or warping.
Internal Crack Detection (Ring Test): Hold the wheel and gently tap it with a wooden hammer. A wheel without cracks will emit a clear, ringing sound; a cracked wheel will produce a dull, dead sound and must not be used.
| Specification (OD * Thickness * Bore * Flange Slot) | Approx. Weight (g) | Quick Search Keywords |
| 205 * 40 * 127 * 12 | 2000 g | 205x40x127 GC Wheel |
| 230 * 40 * 127 * 12 | 4000 g | 230x40 Green SiC |
| 280 * 40 * 150 * 12 | 5000 g | 280x40x150 Correcting Ring |
| 330 * 40 * 200 * 12 | 7000 g | 330x40x200 Correcting Wheel |
| 330 * 60 * 200 * 12 | 8000 g | 330x60 Thick Grinding Wheel |
Contact us today to get a quote and technical support for the Green Silicon Carbide Correcting Ring Grinding Wheel and begin your new era of precision grinding!
